Pony car

1973 AMC Javelin AMX

Pony car powered by 1973 Javelin AMX 304/360/401 V8 range.

Copper Tan 1973 Javelin AMX 360 automatic, front three-quarter and engine-bay view
Body Four-seat Javelin AMX hardtop on a 110-inch wheelbase
Standard engine 304 two-barrel V8, 150 net hp
Performance choices 360 four-barrel/220 hp or 401 four-barrel/255 hp, each eligible for a Go Package
Production 5,707 AMXs: 1,134 with 304, 3,153 with either 360, and 1,420 with 401

Story

1973 AMC Javelin AMX

The four-seat Javelin AMX entered 1973 with a 304 two-barrel V8 as standard equipment, not a 360. Buyers could step through a 360 two-barrel, a 360 four-barrel, or the 401 four-barrel. The two high-output engines could be paired with AMC's Go Package, which combined cowl-air induction, dual exhaust, heavy-duty cooling and handling equipment, Twin-Grip, power front discs, Rally-Pac instruments, 15-inch wheels and tires, a hood T-stripe, and a black rear panel.

The standard 304 used a floor-shift three-speed; an A998 automatic was optional. The 360 two-barrel required the A727 automatic, while the 360 four-barrel and 401 could use either the A727 or a close-ratio Borg-Warner four-speed with Hurst linkage. Axle ratios followed the engine and transmission rather than one universal AMX specification.

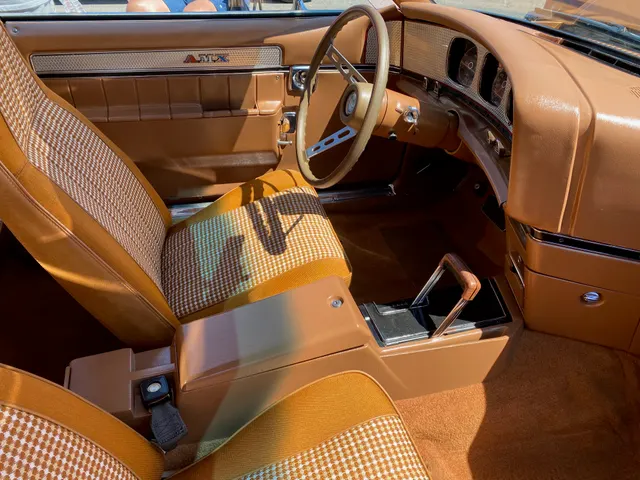

The AMX retained its mesh grille, high front fenders, rear spoiler, slot-style wheels, high-back buckets, three-spoke wheel, and engine-turned instrument panel. Sixteen reviewed Javelin colors were available. The Pierre Cardin interior was a separate 1973 option, not proof of a Go Package or 401.

AMC produced 5,707 Javelin AMXs for 1973. An individual car should reconcile the VIN, door tag, order or build records, window sticker, engine family and date tag, transmission, axle, paint, trim, and surviving original features. Badges, a T-stripe, a cowl hood, or a replacement V8 cannot authenticate the car by themselves.

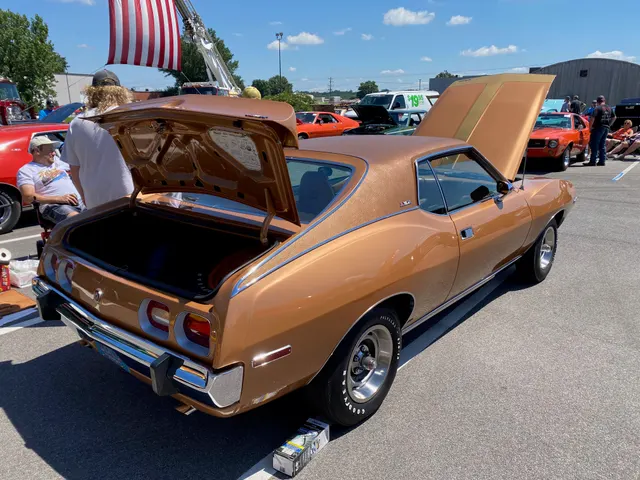

Copper Tan 1973 Javelin AMX 360 automatic, rear three-quarter and trunk viewChristopher Ziemnowicz via Wikimedia Commons · CC BY 4.0

Price history

Values

Nominal dollars from original price sheets, auction archives, and approved value references.

Original Price

Market Observations

  • Price guide value $22,900

    Aug 4, 2026 · Hagerty Valuation Tools · Current guide point

    Current #3 good-condition guide benchmark for the 1973 Javelin AMX 360 four-barrel. · unknown · good Guide value, not a transaction or proof of originality.
  • Auction sale $19,529

    Jun 5, 2026 · Hagerty Marketplace

    H-code 360 four-barrel automatic with fuel injection, modern wheels, four-wheel discs, instrumentation, lighting, audio, and other disclosed modifications. · modified · fair Completed no-reserve sale; not a stock-condition comparator.
  • Auction sale $44,000

    Sep 6, 2024 · Mecum Dallas

    401 automatic restored in 2012 with aftermarket gauges, air shocks, exhaust, wheels, intake, cooling, audio, and other disclosed changes. · restored · good Completed sale; consignor claims are not factory-spec evidence.
  • High bid $13,000

    Oct 18, 2022 · Bring a Trailer

    360 four-speed with Cardin trim, replacement body panels, fresh paint, rebuilt engine, and disclosed aftermarket induction, ignition, wheels, and exhaust. · restored · fair Reserve not met; retained as a condition-labeled high bid rather than a completed sale.

Values move with paperwork, originality, options, condition, venue, and body style. High bids and guide values are labeled separately from completed sales.

Reference records

Options, Colors & Components

Source-backed details for trim, chassis, production, and authenticity.

Engine Details

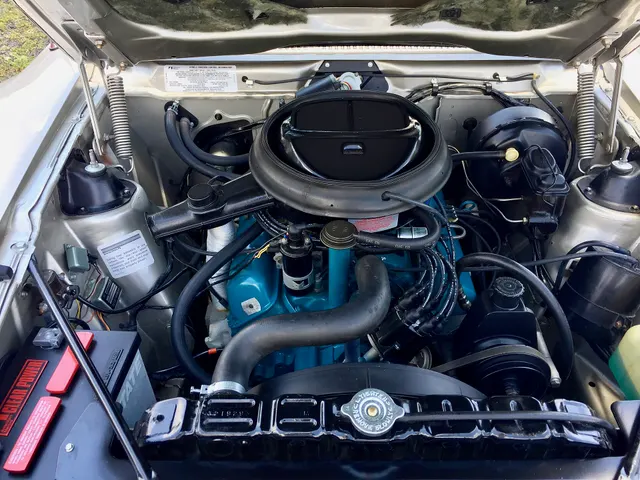

Documented 1973 Javelin AMX 360 four-barrel engine compartmentChristopher Ziemnowicz via Wikimedia Commons · CC BY 4.0
  • Standard engine 304 two-barrel; 150 net hp and 245 lb-ft · 1973 Javelin AMX base power team · engine assembly / specification
  • Optional 360 two-barrel 175 net hp and 285 lb-ft · 1973 Javelin AMX with Torque-Command automatic · engine assembly / specification
  • Optional 360 four-barrel 220 net hp and 315 lb-ft · 1973 Javelin AMX; available with four-speed or automatic and eligible for Go Package · engine assembly / specification
  • Optional 401 four-barrel 255 net hp and 345 lb-ft · 1973 Javelin AMX; available with four-speed or automatic and eligible for Go Package · engine assembly / specification
  • 304 factory service geometry 3.7502-3.7534-inch bore x 3.44-inch stroke; 8.3:1 two-barrel compression; 150 net hp at 4,200 rpm and 245 lb-ft at 2,500 rpm · 1973 AMC 304 V8; use the H engine code, complete VIN, and car-specific records to establish original Javelin AMX installation · engine assembly / specification
  • 360 factory service geometry and output range 4.0799-4.0831-inch bore x 3.44-inch stroke; 8.3:1 compression; two-barrel output 175 net hp/285 lb-ft; four-barrel output 195 hp/295 lb-ft with single exhaust or 220 hp/315 lb-ft with dual exhaust · 1973 AMC 360 V8; distinguish N two-barrel and P four-barrel engine paths plus exhaust and transmission configuration before applying a rating to an individual AMX · engine assembly / specification
  • 401 factory service geometry 4.165-4.167-inch bore x 3.68-inch stroke; 8.5:1 four-barrel compression; 255 net hp at 4,600 rpm and 345 lb-ft at 3,300 rpm · 1973 AMC 401 V8; use the Z engine code, complete VIN, and car-specific records to establish original Javelin AMX installation · engine assembly / specification
  • Model 4300 four-barrel application codes Factory 360/401 Model 4300 table lists code 3TM4 for manual transmission and 3TA4 for automatic transmission · 1973 AMC 360/401 four-barrel service boundary; a carburetor code must be reconciled with engine tag, transmission, build records, date evidence, and calibration details for an individual AMX · carburetor / carburetor list

Transmission

  • Factory transmission Floor-shift three-speed manual with 304
  • Factory transmission Torque-Command A998 automatic with 304
  • Factory transmission Torque-Command A727 automatic with 360 or 401
  • Factory transmission Borg-Warner Super T-10 close-ratio four-speed with 360 four-barrel or 401

Options

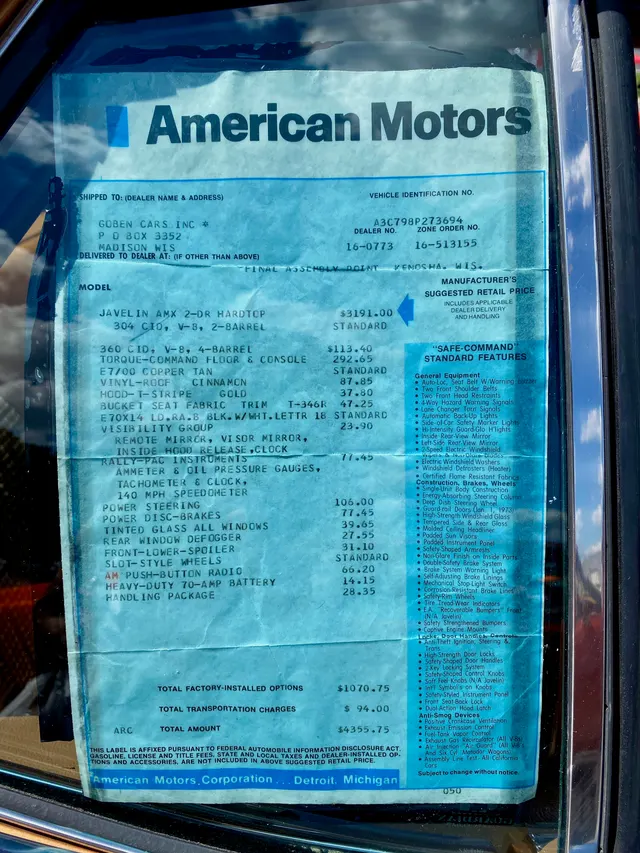

Surviving 1973 Javelin AMX 360 four-barrel window sticker with factory pricesChristopher Ziemnowicz via Wikimedia Commons · CC BY 4.0

Paint

1973 Javelin AMX slot-style wheel and E70-14 raised-white-letter tireChristopher Ziemnowicz via Wikimedia Commons · CC BY 4.0

Chassis

Authenticity

1973 Javelin AMX suspension, brake, and axle referenceClassic Muscle · Reference illustration
  • 1973 Javelin AMX identity 1973 model-year Javelin body series and AMX trim agree across the VIN, door tag, factory records, and ownership history. · VIN, door tag, build/order record, window sticker, title history, and protected body evidence. · fraud detection
  • Engine and transmission configuration The 304, 360 two-barrel, 360 four-barrel, or 401 path and its compatible transmission agree with records, family identifiers, dates, and hardware. · VIN engine character, door tag and records, block displacement casting, valve-cover tag, transmission tag, shifter, linkage, and dates. · numbers matching
  • Go Package Car-specific order evidence supports the 360 or 401 Go Package and its cowl-air, exhaust, cooling, suspension, Twin-Grip, brake, instrument, wheel, tire, stripe, and rear-panel equipment. · Window sticker, order/build record, original package hardware, axle evidence, protected stripe and paint evidence, and ownership history. · fraud detection
  • Paint and interior Door-tag paint and trim agree with protected finish, factory color selector, upholstery construction, and order records. · Door tag, window sticker, build/order record, protected paint, seat/door/headliner construction, and period photographs. · trim correctness
  • Factory V8 engine identification boundary The 1973 AMC service manual locates the engine code on a tag attached to the right-bank cylinder-head cover; H identifies 304 two-barrel, N 360 two-barrel, P 360 four-barrel, and Z 401 four-barrel, while displacement is cast into both block banks between the first and second core plugs · Right-bank valve-cover tag, displacement castings above the engine mounts, left-front block pad on Georgia or Tennessee sale engines, adjacent machining-correction code, build records, and physical inspection · numbers matching

Still Researching

  • engine Factory and specialist records establish all four engine paths, but a complete dated 1973 carburetor, casting, tag, emissions, and ancillary-component matrix was not recovered.
  • production AMX totals and broad engine splits are known, but the reviewed source does not split 360 two- versus four-barrel, transmission, Go Package, paint, or interior production.
  • option packages The factory specifications page now normalizes the major packages and 42 directly listed AMX-applicable standalone options and restrictions, but it does not provide the complete dealer sales-code, dollar-price, effective-date, revision, regional, or combination-order matrix.
  • authenticity markers Core VIN, engine-family, factory V8 code/casting locations, Go Package, paint, and trim checks are known, but complete component-date and assembly-number guidance remains unresolved.

Codes & names

Names & Engine Codes

Common names and codes are grouped so LS6 references point to the same engine, not separate pages.

1973 AMX V8 range 1973 Javelin AMX 304/360/401 V8 range
1973 Javelin AMX engine family 1973 Javelin AMX 304/360/401 V8 range
1973 AMX standard 304 and optional 360/401 1973 Javelin AMX 304/360/401 V8 range
1973 AMX Go 360/401 range 1973 Javelin AMX 304/360/401 V8 range

Photo and video gallery

Gallery

4 photos and videos
