1969 AMC Javelin

Pony car powered by 1969 AMC Javelin engine family.

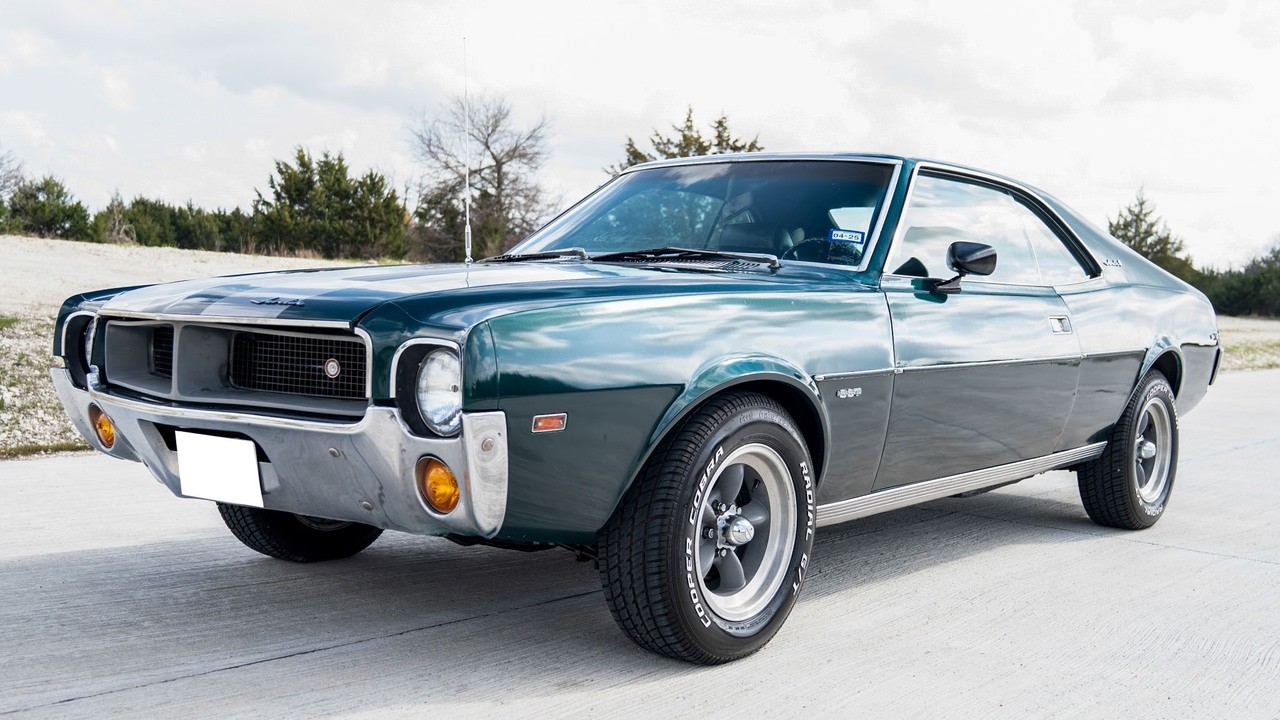

Exact-year Javelin SST retained as the stock-presenting family baseline; stripes, wheels, tires, finish, and restoration remain car-specific.

Bodies Two-door four-seat hardtop

Configurations base, SST, Go Package, Mod Package

Engine range 232 six through 390 four-barrel V8

Chassis Coil-spring front and leaf-spring rear

Production Exact configuration ledger remains unresolved

Story

1969 AMC Javelin

The 1969 Javelin family combined two-door four-seat hardtop with base, SST, Go Package, Mod Package configurations. This page keeps those factory choices together without treating an engine, stripe, badge, or trim package as a separate car identity.

Engines and transmissions

The 232 six and 290 and 343 V8s covered regular cars, while the 390 supplied the top factory performance path. Transmission, induction, cooling, exhaust, axle, emissions equipment, and dates must match the selected engine path.

Chassis and brakes

Independent coil-spring front suspension and a leaf-sprung live rear axle supported every four-seat hardtop. Brake, steering, spring, damper, axle, ratio, wheel, and tire equipment varied by configuration and must be reconciled to factory and car-specific records.

Body, trim, and proof

Start with VIN or serial, body tag, title, shell, and ownership history. Then reconcile drivetrain, chassis, protected finish, cabin, trim, dates, and records. Replaceable badges, stripes, wheels, or a swapped engine cannot establish factory configuration.

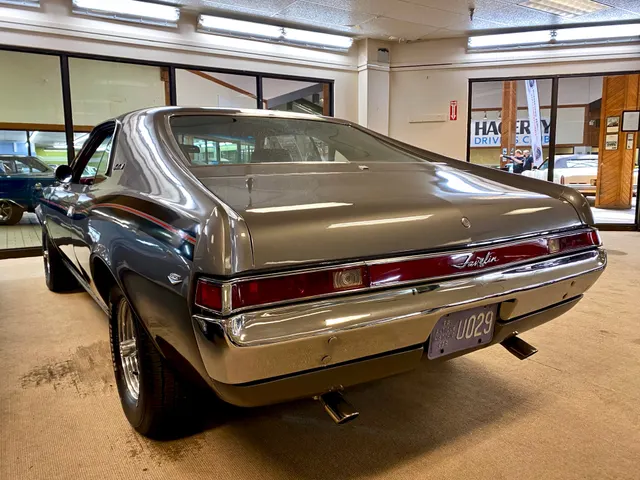

**Exact-year Javelin SST rear three-quarter view retained for tail-panel, bumper, lamp, roofline, and body-proportion context; exhaust tips, tires, finish, and condition remain car-specific.**CZmarlin via Wikimedia Commons · CC0

Price history

Values

Nominal dollars from original price sheets, auction archives, and approved value references.

Original Price

A verified original price is not yet available for this car.

Values move with paperwork, originality, options, condition, venue, and body style. High bids and guide values are labeled separately from completed sales.

Reference records

Options, Colors & Components

Source-backed details for trim, chassis, production, and authenticity.

Engine Details

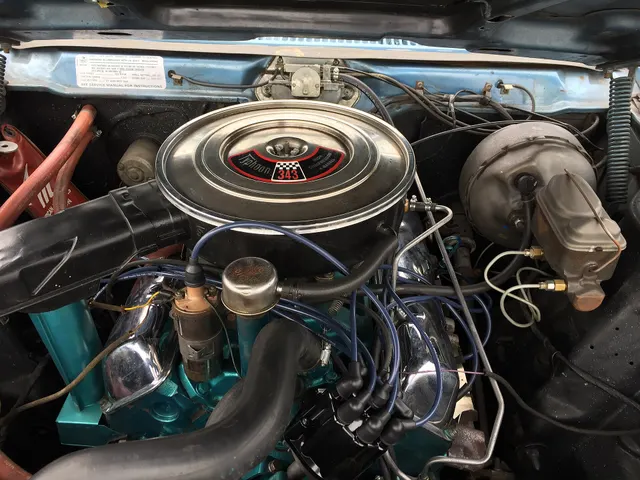

**Exact-year Javelin 343 engine bay retained for engine, air-cleaner, brake, firewall, and service-label context; hoses, ignition parts, finishes, and condition remain car-specific.**CZmarlin via Wikimedia Commons · CC BY-SA 4.0

232 inline-six 232 cu in with one-barrel induction · Base Javelin path · engine assembly / specification
290 V8 290 cu in with two- or four-barrel induction · Javelin and SST · engine assembly / specification
343 V8 343 cu in with two- or four-barrel induction · SST and Go Package path · engine assembly / specification
390 V8 390 cu in with four-barrel induction · High-performance Go Package path · carburetor / specification

Transmission

Factory transmission Three-speed manual by engine application
Factory transmission Four-speed manual where factory listed
Factory transmission Automatic transmission matched to engine and axle application

Options

Engines and Induction summarized from reviewed factory and marque references.Classic Muscle · Reference illustration

SST SST trim factory · appearance · Model code, cabin, instruments, console, and exterior trim must agree.
GO-PACKAGE Go Package factory · performance · Engine, cooling, exhaust, suspension, brakes, wheels, axle, trim, and records must agree.
MOD-PACKAGE Mod Package factory · appearance · Package-specific scoops, stripe, rocker trim, and spoiler require body-tag and record support.
390 390-cid V8 factory · performance · Engine, induction, cooling, transmission, axle, dates, and records define one application.
TWIN-GRIP Twin-Grip differential factory · performance · Carrier, ratio, housing, dates, and records define one installation.

Paint

Exact-year Castillian Gray Javelin SST side profile retained for paint, black stripe, badges, wheel, and bright-trim context; restoration choices and condition remain specific to this car.CZmarlin via Wikimedia Commons · CC0

A1 Snow White factory · solid
A2 Classic Black factory · solid
B1 Medium Blue factory · solid
G1 Medium Green factory · solid
P1 Medium Red factory · solid
Y1 Mustard Yellow factory · solid

Production

Transmissions summarized from reviewed factory and marque references.Classic Muscle · Reference illustration

1969 AMC Javelin family total · disputed

Authenticity

Rear Axle and Ratios summarized from reviewed factory and marque references.Classic Muscle · Reference illustration

Model-year identity 1969 Javelin VIN or serial, body tag, title, shell, drivetrain, trim, protected finish, and ownership evidence that agrees · VIN or serial plate, body or trim plate, chassis, title, build records, and ownership history · fraud detection
Engine and transmission Configuration-correct engine, induction, transmission, controls, stampings, castings, and dates · Engine, induction, gearbox, shifter, pedals, stamp pads, castings, dates, and records · numbers matching
Axle, brakes, and suspension Application-correct axle, ratio, brake system, steering, springs, links, and dampers · Axle housing and carrier, brakes, steering, suspension, dates, service records, and build evidence · date correctness
Paint, exterior trim, and cabin Plate- and record-supported finish, moldings, badges, wheels, upholstery, instruments, and controls · Body and trim plates, protected paint, upholstery, hardware, dashboard, and restoration records · trim correctness

Still Researching

production No reviewed public ledger reconciles 1969 Javelin production by body, model, engine, transmission, axle, paint, trim, options, plant, date, and surviving-car status.
paint colors Reviewed references establish representative factory colors but not a complete body, trim, stripe, special-order, plant, and build-date compatibility matrix.
interior Broad cabin equipment is documented, but the complete upholstery color, material, body, option, and production-date matrix is not publicly reconciled.
authenticity markers Public model references cannot prove one survivor's born-with shell, drivetrain, chassis components, paint, trim, options, or component dates.
