1977 Pontiac Firebird Trans Am W72 400
The 1977 Trans Am W72 400 was a factory-built Firebird Trans Am configuration, not a special edition. The defining option was Pontiac's W72 performance package, which engine and option references list separately from the base L78 Pontiac 400 and the California/high-altitude Oldsmobile 403.
The source-backed core is conservative: Tran-Zam's 1977 engine table identifies W72 as a Pontiac 400 four-barrel with 8.0:1 compression, 200 net horsepower at 3,600 rpm, and 325 lb-ft at 2,400 rpm. It also lists the W72 with M20 four-speed manual and M40 Turbo Hydra-Matic availability and a 3.23 axle entry. Hitman's/78TA's W72 reference adds component-level differences reported for the T/A 6.6 package, including 6X-4 heads, a specific camshaft, Rochester 800-cfm carburetor, higher-capacity 60-psi oil pump, and the 500557 block context for 1977 W72 engines.
Model-line records identify the Trans Am's visual and chassis setting: shaker hood and air cleaner, front air dam, rear wheel-opening spoilers, rear spoiler with Trans Am decal, fender air extractors, Rally gauges with tachometer, console with floor shifter, Formula steering wheel, variable-ratio power steering, radial-tuned suspension, front-disc/rear-drum brakes, and FR78-15 raised-white-letter radials. These are recorded as Trans Am equipment rather than proof of any individual car's originality.
Paint coverage is limited to colors a 1977 color source marks as available for Trans Am; colors explicitly marked unavailable on Trans Am are not presented as choices for this car. Production is likewise split: the model-line Trans Am total and W72 Trans Am manual/automatic rows are included as reported reference records, while finer claims require factory invoices, build sheets, or Pontiac Historical Services documentation. Authenticity guidance therefore centers on verifiable documentary markers: build-sheet W72 language, VIN engine-source character context, block/head/carburetor clues, and the distinction between T/A 6.6/W72 and ordinary 6.6 Litre trim.

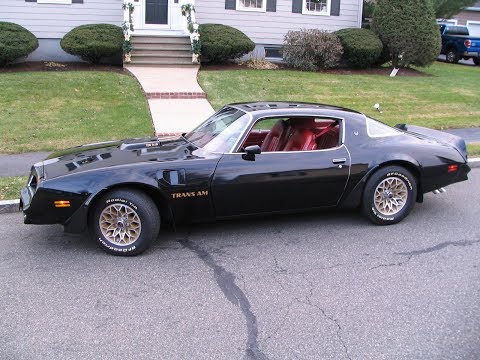

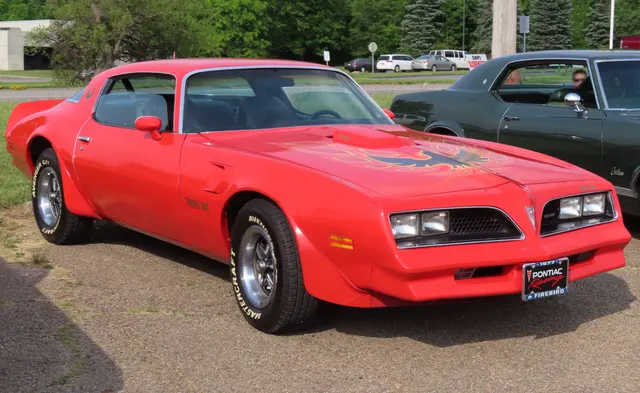

The gallery shows exact-year Trans Ams as model and appearance context. A T/A 6.6 shaker decal supports visual identification, but documents and drivetrain evidence are still required to establish that an individual car was built with W72 equipment.
