1977 Chevrolet Corvette

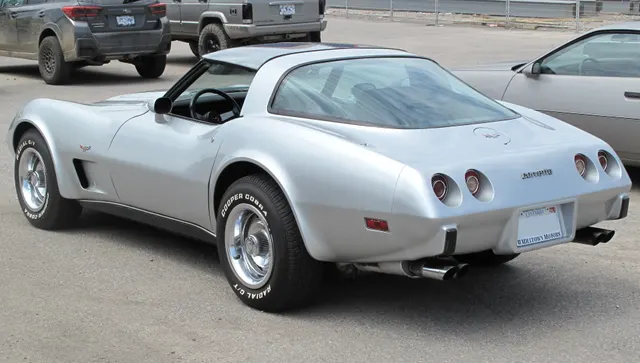

The 1977 Corvette was a coupe-only two-seat C3 with removable roof panels and fixed rear glass. Chevrolet built 49,213, another model-year production record, and the 500,000th Corvette left St. Louis on March 15. The year introduced available cruise control, made V54 luggage racks a factory option, revised the cabin, and retired the Stingray name from factory identification.
A year of visible transitions
Early cars retained an alarm key cylinder in the left front fender and lacked the later crossed-flags fender emblems. During production, Chevrolet moved the alarm function into the door lock and added new crossed-flags emblems to the fenders, nose, and fuel-filler door. The instrument cluster, console, steering column, steering wheel, dimmer control, and wiper controls also changed. Those details help place a car in the production sequence, but service replacements and restoration work mean no single emblem or control authenticates an individual car.
Two 350 V8 choices
The standard L48 350 made 180 SAE net horsepower and 270 lb-ft. The optional L82 made 210 horsepower and 255 lb-ft and was unavailable in California. Chevrolet recorded 6,148 L82 orders. Subtracting those from total production implies 43,065 L48 installations, but that is arithmetic rather than a separately printed production row.
Transmission choices were a Warner wide-ratio four-speed, the M21 close-ratio four-speed, and M40 automatic paths. Chevrolet recorded 2,060 M21 and 41,231 M40 orders, leaving an implied 5,922 wide-ratio manuals. The identification table lists W for the Warner four-speed, AM for the L48 Turbo Hydra-Matic 350, and CB for the L82 Turbo Hydra-Matic 400. Case, code, date, ratio, linkage, axle, and factory records still need to agree on a particular car.
Chassis and brakes

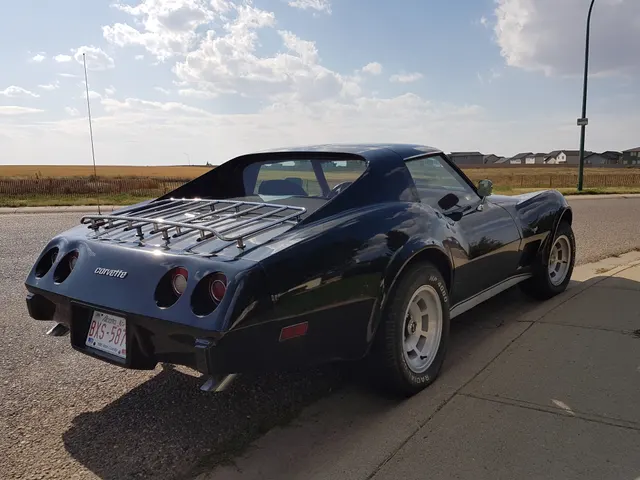

Every Corvette used independent front and rear suspension, four-wheel power-assisted vented discs with 11.75-inch rotors, 15x8 wheels, radial tires, and a frame-mounted Positraction differential. FE7 Gymkhana suspension was ordered on 7,269 cars and YJ8 cast-aluminum wheels on 12,646. Current springs, shocks, wheels, tires, or stance do not establish factory FE7 or YJ8 equipment.
Production, colors, and cabin
Chevrolet built 49,213 coupes. The twelve published paint rows total 49,133, 80 fewer than total production, so the page preserves that accounting difference rather than assigning it to a color. One Chartreuse car and 71 Corvette Yellow cars appear in the table alongside the regular-volume colors.
The source lists thirteen cloth and leather trim codes but publishes quantities for only three cloth rows. Those known rows total 9,795, leaving 39,418 cars across ten unquantified trim codes or a remaining reconciliation difference. Leather seating became the standard no-extra-cost path, while cloth combinations remained available. Power windows, air conditioning, tilt-telescopic steering, rear defogger, three audio choices, and first-year K30 cruise control could make the compact cabin considerably more comfortable.
Identifying a real 1977
The VIN begins 1Z37 for the coupe. The fifth character identifies L for L48 or X for L82; the model-year character is 7 and the St. Louis plant character is S. The published sequence runs from 400001 through 449213 and reconciles to the 49,213-car total.
Engine suffixes CLD or CLF identify the published L82 manual or automatic contexts. CKZ identifies an L48 manual, while CHD, CKD, CLA, CLB, and CLC cover published L48 automatic emissions and altitude combinations. Partial VIN, 3970010 block, 333882 heads, dates, Quadrajet, HEI distributor, transmission identification, axle code, emissions equipment, trim tag, build sheet, and other factory records should agree. An L82 badge, luggage rack, wheel choice, paint, or current engine shows what is present now, not necessarily what left St. Louis.
Market context
The dated observations below span 2018 through 2025 and include long-owned, documented, restored, and modified coupes, L48 and L82 configurations, manuals and automatics, completed sales and reserve-not-met high bids. They are comparable examples rather than a price guide for an unseen car; condition, documentation, drivetrain, transmission, originality, and work quality all change the result.
