The Gentleman's Stump-Puller: The 1970 Buick GSX Stage 1
Conceived during the absolute zenith of the American muscle car wars, the 1970 Buick GSX Stage 1 stands as one of the most remarkable, sophisticated, and brutally powerful vehicles ever to emerge from Detroit. Long regarded as the "gentleman's muscle car," Buick's entry into the high-impact supercar market shattered the brand's conservative, "doctor's car" reputation, delivering a vehicle that combined luxury-grade comfort with a tire-shredding powertrain.
Historical Context and Development
By the late 1960s, General Motors’ midsize performance landscape was dominated by high-profile corporate stablemates like the Pontiac GTO Judge, Oldsmobile 4-4-2 W-30, and Chevrolet Chevelle SS. Buick, positioned near the top of the GM brand hierarchy, wanted to capture the attention of the younger, performance-focused buying public and drive showroom traffic to its newly redesigned 1970 Skylark body style.
Under the guidance of Buick's performance-minded engineers and designers—and heavily influenced by GM styling chief Bill Mitchell—Buick developed the GSX (Option Code A9) as an appearance, handling, and performance package on the GS455 hardtop (Model 44637). The GSX was officially introduced in February 1970 at the Chicago Motor Show as a radical, Mother-of-Pearl white prototype, and regular production commenced shortly thereafter in March 1970.
Because of its late-model-year introduction, production was short-lived, running only from March to May 1970. All 1970 GSX models were built at Buick's Flint, Michigan assembly plant (signified by the "H" plant code in the VIN).
The Stage 1 Powertrain: A Torque Legend
While the standard GSX was equipped with Buick’s formidable 455-cubic-inch V8 producing 350 horsepower, the ultimate specification was the GSX Stage 1. By selecting Option Code A1, buyers received the heavily modified Stage 1 version of the 455 V8.
The Stage 1 engine modifications were extensive:
- Cylinder Heads: High-flow cylinder heads featuring larger valves. The intake valves were enlarged to 2.120 inches (compared to 2.00 inches standard), and the exhaust valves were increased to 1.755 inches (compared to 1.625 inches standard). Heavy-duty valve springs were installed to prevent valve float at high RPMs.
- Camshaft: A high-lift, long-duration high-performance camshaft was fitted to optimize air-fuel delivery.
- Carburetion: A specially calibrated Rochester Quadrajet four-barrel carburetor (750 cfm) was mounted on a cast-iron intake manifold to feed the massive displacement.
- Oiling and Block: The block featured a beefed-up oiling system with a high-capacity oil pump to ensure reliability under extreme conditions.
Officially, General Motors rated the 1970 Buick GSX Stage 1 at 360 gross horsepower at 4,600 RPM. This was widely known to be an understatement designed to appease insurance companies and corporate overseers; actual output was dyno-tested by contemporary tuning shops at closer to 400–420 horsepower.
However, the engine's true claim to fame was its peak torque rating: 510 lb-ft of torque at a low 2,800 RPM. This represented the highest torque rating of any American production performance car in history—a record that stood for over three decades until it was finally surpassed by the ten-cylinder Dodge Viper in 2003. Combined with the relatively light weight of the Buick 455 engine block—which weighed approximately 150 pounds less than a cast-iron Chrysler 426 Hemi or Chevrolet 454 V8—the GSX Stage 1 boasted an exceptional power-to-weight ratio.
Drivetrain, Suspension, and Chassis Dynamics
To manage the massive torque of the Stage 1 engine, Buick provided buyers with two heavy-duty transmission choices:
- Manual: A Muncie M21 close-ratio four-speed manual transmission, operated via a floor-mounted Hurst shifter.
- Automatic: A three-speed Turbo-Hydramatic 400 automatic transmission, specially calibrated with the famous "BB" valve body code. This unit featured exceptionally high shift points tailored specifically for the Stage 1 torque curve.
Power was routed to a heavy-duty Buick 10-bolt rear axle equipped with a standard limited-slip Positraction differential. For non-air-conditioned cars, the standard axle ratio was a short 3.64:1, providing blistering acceleration off the line. Cars ordered with factory air conditioning received a slightly taller 3.42:1 axle ratio to reduce highway cruising RPMs and prevent overheating.
Chassis dynamics were dramatically enhanced via the standard Ride and Handling package (Option F41), which included:
- Stiffer front and rear coil springs.
- Firmly valved shock absorbers.
- A 1.0-inch front anti-sway bar and a 0.875-inch rear anti-sway bar.
- Reinforced rear control arms.
- Fast-ratio power steering.
- Mandatory power front disc brakes.
The car rode on massive 15x7-inch chrome-plated "Super Strength" steel wheels wrapped in Goodyear Polyglas G60-15 bias-ply tires featuring raised white letters.
Visual Styling and Aesthetics
The GSX was Buick's most visually aggressive package. Unlike the standard, understated Gran Sport models, the GSX demanded attention. For the 1970 model year, the GSX package was available in only two high-contrast paint colors:

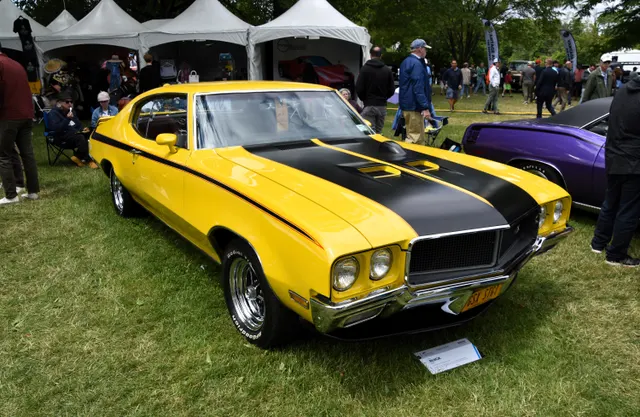

- Saturn Yellow (Code QQ): A bright, striking yellow, which was applied to 187 units.
- Apollo White (Code 10/WT3): A clean, brilliant white, which was applied to the remaining 491 units.
All 1970 GSX models featured:
- A distinctive full-body-length black stripe outlined in fine red pin-striping that ran along the body sides and swept across the rear decklid.
- A large matte black hood section with functional, dual-inlet ram-air hood scoops.
- A driver-side, hood-mounted tachometer.
- A black front spoiler mounted beneath the bumper and a matching decklid-mounted rear spoiler.
- A blacked-out grille with GSX badging.
Inside, the GSX was finished exclusively in black vinyl. It came standard with high-back bucket seats, a center console, a custom Rallye steering wheel, and a standard floor shifter. Despite its track-ready performance, the interior retained Buick's signature luxury, featuring high-quality sound insulation, woodgrain trim accents, and optional comfort equipment like power windows, power locks, and AM/FM radio.
Production and Rarity
During its brief 1970 production run, Buick manufactured a total of only 678 GSX units. This makes the 1970 GSX one of the rarest and most collectible muscle cars of the classic era. The production breakdown is as follows:
- Standard 455 GSX: 278 units.
- Stage 1 GSX: 400 units.
- Automatic Transmission (TH400): 282 units.
- Manual Transmission (Muncie M21): 118 units.
- Saturn Yellow: 187 units (including both standard and Stage 1).
- Apollo White: 491 units (including both standard and Stage 1).
Today, the 1970 Buick GSX Stage 1 is revered as an absolute masterpiece of the muscle car era. Its combination of luxury, striking high-contrast styling, legendary torque output, and low production numbers has solidified its status as one of the ultimate collectibles in automotive history.
