Compact performance

1966 Rambler American Rogue

Compact performance powered by 1966 Rambler American Rogue engine range.

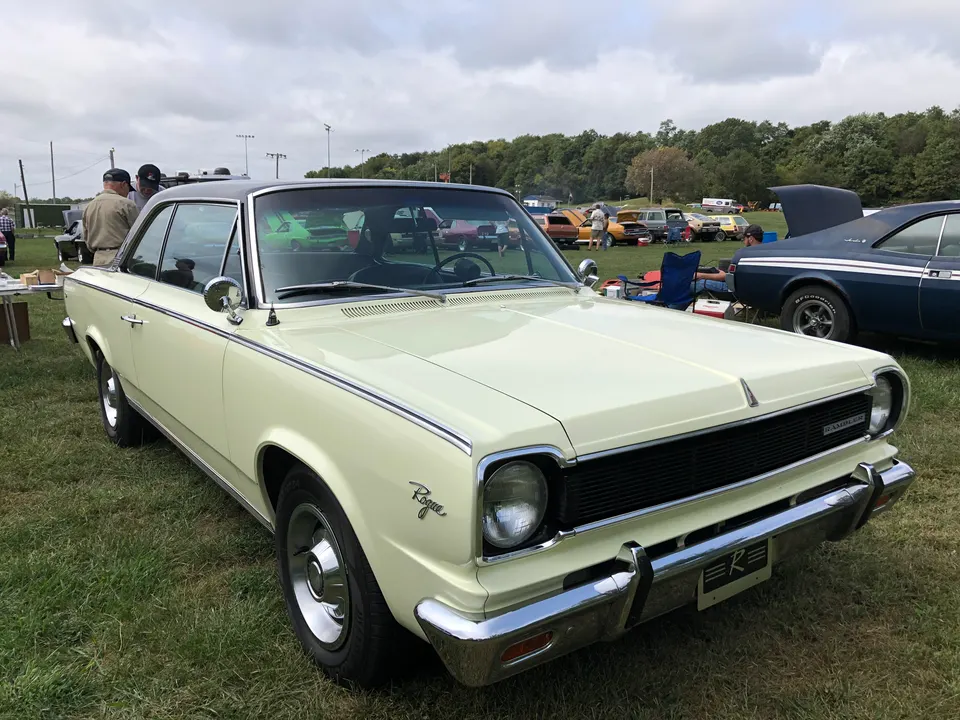

Restored 1966 Rambler American Rogue 290 V8 hardtop, front three-quarter view
Body Two-door pillarless hardtop
Model code 6609-7
Engines 199 or 232 six; midyear 290 V8
Wheelbase 106 inches
Production 8,718 hardtops reported

Story

1966 Rambler American Rogue

The Rogue arrived as the top American hardtop for 1966. It was not a separate body shell or a badge package applied to every American: model code 6609-7 identifies the two-door pillarless hardtop, while 6609-5 identifies the related 440. Factory literature gave the Rogue reclining bucket seats with a folding center cushion and armrest, a custom steering wheel, full wheel discs, and its own exterior identification.

Early in the model year, the standard engine was AMC's 128-hp 199 inline-six, with a 155-hp 232 optional. AMC then used the Rogue to introduce its new-generation 290 V8 in 200-hp two-barrel and 225-hp four-barrel forms. All three factory engine paths belong on this model-year page; a 1967 Rogue convertible or an ordinary 440 does not.

The records are strongest on the core identity and initial six-cylinder specification. The body plate records model, trim, and body-and-roof paint codes, but badges, a 290 swap, a tachometer, or a restored cabin cannot prove how one car was built. Reported sources also disagree by two cars on 1966 V8 production, so the disputed split stays out of the headline facts until better evidence resolves it.

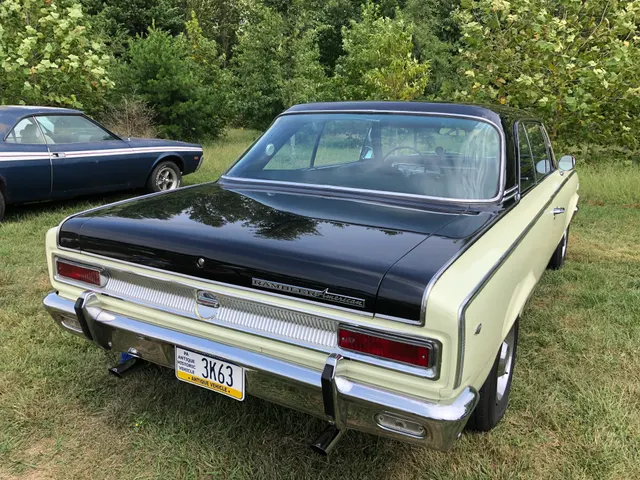

Restored 1966 Rogue 290 V8 hardtop, rear three-quarter viewChristopher Ziemnowicz via Wikimedia Commons · CC BY-SA 4.0

Price history

Values

Nominal dollars from original price sheets, auction archives, and approved value references.

Original Price

Values move with paperwork, originality, options, condition, venue, and body style. High bids and guide values are labeled separately from completed sales.

Reference records

Options, Colors & Components

Source-backed details for trim, chassis, production, and authenticity.

Engine Details

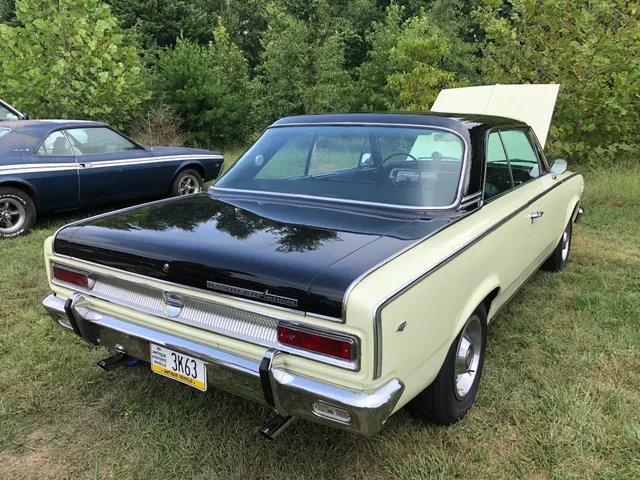

Restored 1966 Rogue 290 V8 with the hood openChristopher Ziemnowicz via Wikimedia Commons · CC BY-SA 4.0
  • 199 Torque Command inline-six 128 gross hp at 4,400 rpm; 182 lb-ft at 1,600 rpm; 8.5:1 compression; one-barrel carburetor; 3.75 x 3.00-inch bore and stroke · standard engine in the initial Rogue specification · engine assembly / specification
  • 232 Torque Command inline-six 155 gross hp at 4,400 rpm; 222 lb-ft at 1,600 rpm; 8.5:1 compression; two-barrel carburetor; 3.75 x 3.50-inch bore and stroke · optional six-cylinder engine · engine assembly / specification
  • 290 V8, two-barrel 200 gross hp; 8.5:1 compression; 3.75 x 3.28-inch bore and stroke · midyear V8 path · engine assembly / specification

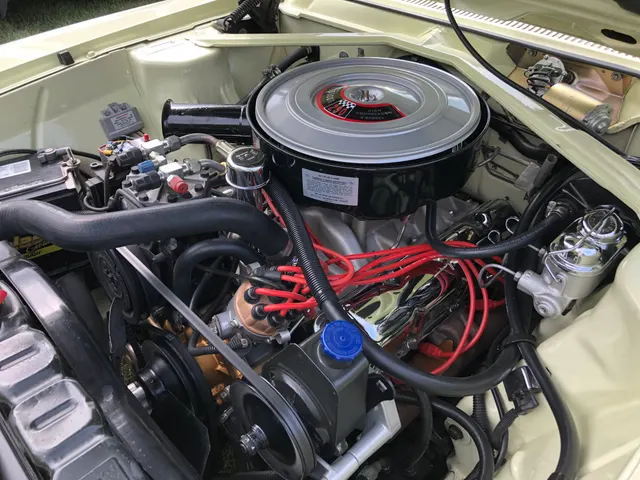

  • 290 V8, four-barrel 225 gross hp; 10.0:1 compression; 3.75 x 3.28-inch bore and stroke · midyear high-compression V8 path · engine assembly / specification
  • 290 displacement casting 290 cast into each side of the block between the freeze plugs, behind the engine mounting plates · 1966-1969 AMC 290 Gen 2 short-deck V8 identification; the casting identifies displacement but does not prove that an engine is original to a specific car · block / casting number
  • 290 cylinder-head casting 3178453 production head; 3206989 service-replacement head · 1966-1968 AMC 290 V8 with rectangular exhaust ports, single-pivot rockers, 54.43 cc nominal chambers, 1.787-inch intake valves, and 1.406-inch exhaust valves · cylinder head / casting number

Transmission

  • Factory transmission The initial factory schedule offered a column-shift three-speed, overdrive manual, and automatic with either six
  • Factory transmission The 232 enabled a Rogue-only floor-shift Shift-Command three-speed automatic in the initial brochure
  • Factory transmission The 290 could be paired with manual, four-speed, or automatic paths, but an exact midyear unit-and-ratio schedule remains an evidence gap

Options

Model and body identity reference for the 1966 Rambler American RogueClassic Muscle · Reference illustration

Paint

Rogue script and front-fender trim on a restored 1966 290 V8 hardtopChristopher Ziemnowicz via Wikimedia Commons · CC BY-SA 4.0

Interior

Restored 1966 Rogue dashboard, bucket-seat cabin, and four-speed shifterChristopher Ziemnowicz via Wikimedia Commons · CC BY-SA 4.0

Production

Factory engine paths reference for the 1966 Rambler American RogueClassic Muscle · Reference illustration

Authenticity

Chassis and suspension reference for the 1966 Rambler American RogueClassic Muscle · Reference illustration

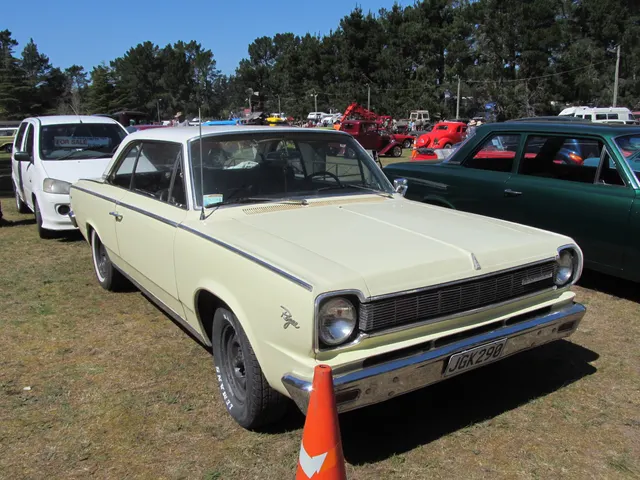

1966 Rambler American Rogue hardtop with later wheels and tiresRiley via Wikimedia Commons · CC BY 2.0
  • Body-plate model code 6609-7 · Body plate riveted to the left front door below the lock. · fraud detection
  • Body-plate trim code A documented Rogue-compatible code in the 641, 643, 644, 645, 647, 648, or 649 family. · Trim field on the left-door body plate. · trim correctness
  • Body and roof paint code Body-color and roof-color fields compatible with the represented factory finish. · Paint field on the left-door body plate. · trim correctness
  • Engine family and date evidence 199, 232, or model-year-appropriate 290 assembly supported by tags, castings, dates, and records. · Engine block, tags, castings, and car-specific paperwork. · numbers matching
  • Rogue series equipment Bucket-seat cabin, custom wheel, full wheel discs, and Rogue trim consistent with factory literature. · Exterior, cabin, body plate, and order records. · trim correctness

Still Researching

  • engine The three factory engine paths, 290 block-displacement casting location, and production and service-replacement head castings are documented, but an exact assembly-number, build-date-tag, casting-date, and stamp matrix was not recovered.
  • transmission The initial six-cylinder transmission schedule is documented; an equally complete midyear 290 unit, ratio, and tag schedule was not recovered.
  • rear axle The six-cylinder axle-ratio schedule and Twin-Grip option are documented, while complete 290 ratio restrictions and axle-tag details remain unresolved.
  • brakes The initial brochure documents dual-hydraulic 9-inch drums for the six-cylinder line but does not settle every midyear 290 brake configuration.
  • suspension The front geometry, rear spring length and leaf counts, and distinction between the handling package and separate heavy-duty spring option are documented, but exact front-spring, rear-spring, and shock part numbers by engine and equipment are not.
  • option packages The factory brochure now supports the Rogue's standard seating, safety, lighting, wheel, and steering equipment plus 33 additional American-line choices and stated dependencies, but it does not provide sales codes, prices, an effective-date Rogue compatibility matrix, or the midyear 290 supplement.
  • production Total Rogue hardtop production is reported as 8,718; surviving secondary sources disagree between 623 and 625 V8 cars and do not provide a supported engine or transmission split.
  • paint colors The factory data book identifies the exact 13-color schedule for American 440 and Rogue models. Code 37 Sungold appears in the broader 1966 AMC body-plate table but not in that Rogue schedule, so its Rogue availability remains disputed pending correction review. Exact body/roof and paint/interior compatibility and color frequencies remain unresolved.
  • trim and appearance Core Rogue trim and roof treatments plus factory paint-to-upholstery compatibility are documented, but the complete roof, wheel, and tire ordering matrix and any date-sensitive or special-order combinations are not.
  • authenticity markers The body-plate model, trim, and paint fields are documented; individual originality still requires VIN, drivetrain tags, dates, and ownership records.
