1963 Pontiac Catalina Super Duty 421

Full-size performance powered by 1963 Pontiac Super Duty 421 V8.

Stock-presenting 1963 Catalina Series 2311 two-door sedan shown as the factory-eligible Super Duty body; the photographed car's drivetrain is not asserted

Build path Factory special-order competition program through early 1963

Eligible Catalina body Series 2311 two-door sedan

Engines 390-hp single-four-barrel; 405- or 410-hp dual-four-barrel Super Duty 421

Transmission Manual only; heavy-duty three-speed or optional close-ratio four-speed

Production context 77 Super Duty Catalinas reported; 14 were Swiss Cheese lightweights

Story

The 1963 Catalina Super Duty was Pontiac's last factory-backed full-size drag-racing statement before General Motors ended direct racing support early in the model year. It was not the same thing as the new street 421 or 421 HO. The Super Duty path remained a special-order, manual-transmission competition program, and the reviewed exact-year record limits the Catalina application to the Series 2311 two-door sedan.

Pontiac listed three Super Duty ratings before the February cutoff. The 390-hp engine used one Carter AFB and 11.0:1 compression. The 405-hp version added dual Carter AFBs at the same published compression, while the 410-hp version raised the factory-listed ratio to 12.0:1. All three used mechanical valve gear. Later histories describe revised lightweight engines with Mickey Thompson pistons near 13.0:1, so a particular engine must be judged by its build timing and supporting records rather than by one blended specification.

Most 1963 Super Duty Catalinas were not Swiss Cheese cars. Hemmings reports 77 Super Duty Catalinas in total and 14 factory lightweights. Those 14 received the extreme treatment: partially opened and heavily drilled frame rails, deletion of the front stabilizer bar and sound insulation, plus aluminum front-sheetmetal, bumpers, brackets, and related competition pieces. Sources agree on the 14-car count but differ on details such as whether every car was Firefrost Silver; that disagreement remains visible in this record.

The standard Catalina chassis still matters when examining a non-lightweight Super Duty car: independent front suspension, a four-link coil-spring rear, 11-inch drum brakes, and Pontiac's 9.3-inch rear axle. Safe-T-Track and special-order axle ratios were available. The Super Duty engines were manual-only; the factory four-speed used a 2.20:1 first gear with 421 power, while period specialist history also identifies a heavy-duty three-speed base path.

Authentication starts with Pontiac billing history and the Series 2311 body, then moves through the engine, carburetion, transmission, axle, dates, and competition equipment. A 421 emblem, dual quads, race lettering, or drilled frame by itself is not proof. The 14 lightweights require an even tighter chain tying the car to its original dealer or team, Engineering Memo 204 equipment, period photographs, and restoration history.

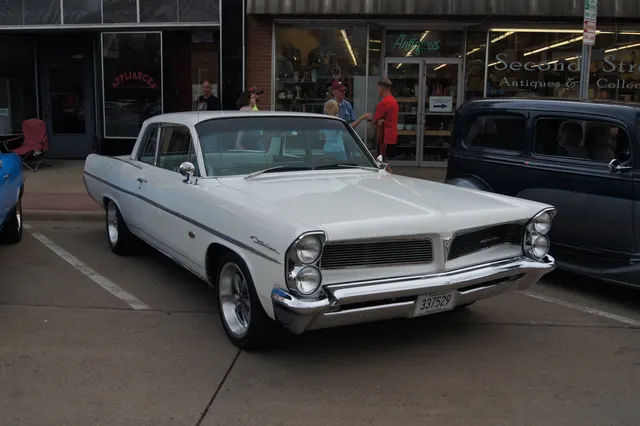

**1963 Catalina two-door sedan body and trim context; later wheels are visible and the photographed car is not presented as a documented Super Duty**Greg Gjerdingen via Wikimedia Commons · CC BY 2.0

Specs

Car type: Full-size performance
Body: Series 23 two-door sedan (2311)
Engine: Pontiac 421 CID Super Duty overhead-valve V8
Horsepower: 390, 405, or 410 hp depending on factory configuration
Torque: 435 lb-ft at 4,400 rpm (390 hp); 425 lb-ft at 4,400 rpm (405 hp); 430 lb-ft at 4,600 rpm (410 hp)
Carburetion: Single Carter AFB 3475S or dual Carter AFBs 3433S and 3435S

Equipment

Mechanical McKellar No. 10 camshaft and 1.65:1 rocker arms
Pontiac 9.3-inch rear axle with optional Safe-T-Track
Independent front and four-link coil-spring rear suspension
Four-wheel 11-inch drum brakes with optional aluminum eight-lug hardware
Fourteen-car Swiss Cheese subset with drilled open-channel frame and extensive aluminum equipment
Factory competition program discontinued early in the 1963 model year

Linked Parts

Price history

Values

Nominal dollars from original price sheets, auction archives, and approved value references.

Original Price

Base MSRP $2,725

1963 Catalina Series 2311 two-door sedan (1963)

1963 Pontiac Models, Prices, and Production
Option price $231

Four-speed Synchromesh manual (1963)

1963 Pontiac Full Size Cars Fact Sheet
Option price $57

Power brake assist (1963)

1963 Pontiac Full Size Cars Fact Sheet
Option price $42

Safe-T-Track differential (1963)

1963 Pontiac Full Size Cars Fact Sheet
Option price $2,250

Super Duty 421 factory option (1963)

1963 Pontiac Full Size Cars Fact Sheet

Values move with paperwork, originality, options, condition, venue, and body style. High bids and guide values are labeled separately from completed sales.

Reference records

Options, Colors & Components

Source-backed details for trim, chassis, production, and authenticity.

Engine Details

Bore and stroke 4.09375 x 4.00 inches · All 1963 Super Duty 421 configurations · engine assembly / specification
390-hp configuration 11.0:1 compression; 390 hp at 5,800 rpm; 435 lb-ft at 4,400 rpm · Single-four-barrel Super Duty 421 · engine assembly / specification
Single-Carter induction Carter AFB 3475S · 390-hp Super Duty 421 · carburetor / part number
405-hp configuration 11.0:1 compression; 405 hp at 5,600 rpm; 425 lb-ft at 4,400 rpm · Dual-four-barrel Super Duty 421 · engine assembly / specification
410-hp configuration 12.0:1 factory-listed compression; 410 hp at 5,800 rpm; 430 lb-ft at 4,600 rpm · High-compression dual-four-barrel Super Duty 421 · engine assembly / specification
Dual-Carter induction Carter AFB 3433S front and 3435S rear · 405- and 410-hp Super Duty 421 · carburetor / part number
Mechanical valve train McKellar No. 10 flat-tappet camshaft, 308/320-degree duration, and 1.65:1 rocker arms · 1963 Super Duty 421 · valve train / specification
Lightweight competition revision Retrospective sources report Mickey Thompson forged pistons near 13.0:1, modified heads, light valves, and aluminum exhaust manifolds · Documented Swiss Cheese lightweight cars; exact equipment is car-specific · engine assembly / specification

Transmission

Factory transmission Manual transmission only across the reviewed Super Duty configurations
Factory transmission Heavy-duty three-speed is reported as the base competition transmission; the optional four-speed uses 2.20, 1.64, 1.31, and 1.00 ratios with 421 power
Factory transmission A retrospective transcription of the Group 35 factory listing identifies the Borg-Warner T-85 three-speed as standard and the Borg-Warner T-10 four-speed as optional; individual-car transmission identity still requires Pontiac billing and unit-level evidence

Options

Three Super Duty Paths reference for the 1963 Pontiac Catalina Super Duty 421Classic Muscle · Reference illustration

SD 421 Factory Super Duty 421 competition engine special_order · performance · Listed at $2,250, manual-transmission only, limited to the Catalina 2311 two-door sedan, and withdrawn early in the model year.
390 hp Single-Carter Super Duty 421 special_order · performance · 11.0:1 configuration using Carter AFB 3475S.
405 hp Dual-Carter Super Duty 421 special_order · performance · 11.0:1 dual-four-barrel configuration.
410 hp High-compression dual-Carter Super Duty 421 special_order · performance · 12.0:1 factory-listed dual-four-barrel configuration; later lightweight histories report additional piston changes.
4-speed Four-speed Synchromesh manual optional · performance · Listed at $231.34; the 421 ratio set begins with a 2.20:1 first gear.
Safe-T-Track Limited-slip differential optional · performance · Listed at $42.
8-lug Aluminum eight-lug hubs and drums optional · chassis · The exact-year listing gives a $122-$138 price range by application.
Engineering Memo 204 Swiss Cheese lightweight equipment special_order · performance · Fourteen-car subset with extensive frame and aluminum-component weight reduction; not standard on every Super Duty Catalina.

Chassis

Wide-Track independent-front and four-link coil-spring rear suspension Suspension · factory
Swiss Cheese lightweight chassis Suspension · special_order
Four-wheel 11-inch hydraulic drum brakes Brakes · factory
Aluminum eight-lug hubs and drums Brakes · optional
Pontiac 9.3-inch semi-floating hypoid rear axle Rear axle · Factory choices included 3.64 and 3.90 special-order ratios · factory
Safe-T-Track limited-slip differential Rear axle · Available with period axle-ratio choices · limited-slip · optional

Production

Super Duty 421 reference for the 1963 Pontiac Catalina Super Duty 421Classic Muscle · Reference illustration

All 1963 Catalina body styles total · 234,549 · documented
Series 2311 two-door sedan by body · 14,091 · documented
Super Duty 421 Catalinas by engine · 77 · reported
Swiss Cheese lightweight Super Duty Catalinas by option · 14 · reported

Authenticity

Carter AFB Induction reference for the 1963 Pontiac Catalina Super Duty 421Classic Muscle · Reference illustration

Factory build path and cutoff Factory-billed 1963 Super Duty 421 built before Pontiac ended the program early in the model year · PHS billing history, factory invoice, build date, dealer or team allocation, and period provenance · fraud detection
Eligible Catalina body Series 2311 two-door sedan · VIN, Fisher cowl tag, body structure, title history, and PHS record · trim correctness
Engine configuration Period-compatible 390-, 405-, or 410-hp Super Duty 421 assembly with configuration-correct compression, carburetion, mechanical valve gear, and dates · Block and head castings, stampings, dates, pistons, camshaft, carburetor tags, intake, exhaust, and factory records · numbers matching
Transmission and axle Manual transmission, rear carrier, ratio, and Safe-T-Track status agree with the individual billing and period record · Transmission case and tags, linkage, axle housing and carrier, ratio, dates, and PHS documents · date correctness
Swiss Cheese lightweight identity One of the 14 documented cars with Engineering Memo 204 equipment, original allocation, period history, and matching construction evidence · PHS and engineering records, drilled open-channel frame, aluminum panels and brackets, deleted equipment, paint layers, dealer or team history, and period photographs · fraud detection
Paint and interior Cowl-tag and physical evidence agree with the individual car's factory path; lightweight silver and blue-trim claims require car-level proof · Cowl tag, original paint layers, trim tags, upholstery evidence, factory invoice, and restoration photographs · trim correctness

Still Researching

engine The exact-year factory-style listing gives the 410-hp configuration 12.0:1 compression, while lightweight histories describe Mickey Thompson piston revisions near 13.0:1; the applicable value depends on the individual engine and build sequence.
transmission Factory general specifications establish the 421 four-speed ratios, and a retrospective Group 35 listing transcription identifies the Borg-Warner T-85 as standard and T-10 as optional; the underlying dated listing and a complete Super Duty transmission-code, case, linkage, and serial-range table were not recovered.
production The reported 77 Super Duty Catalinas and 14 lightweights are not broken down by 390/405/410-hp engine, transmission, dealer or team allocation, build date, or surviving-car status in the reviewed sources.
paint colors Firefrost Silver and at least one Silvermist Gray lightweight are documented, but reviewed sources disagree on the full 14-car split: Hemmings reports 12 Firefrost Silver and two Silvermist Gray, an exact-car history calls the final car the only Silvermist Gray example, and another source says all 14 were Firefrost Silver.
interior Factory material establishes the normal Series 2311 cabin and retrospective sources identify blue lightweight interiors, but no complete Super Duty trim-code and lightweight-seat matrix was captured.
authenticity markers A model-level record cannot prove that a particular Catalina is one of the 77 Super Duty cars or one of the 14 lightweights, nor that its current racing equipment is original.
