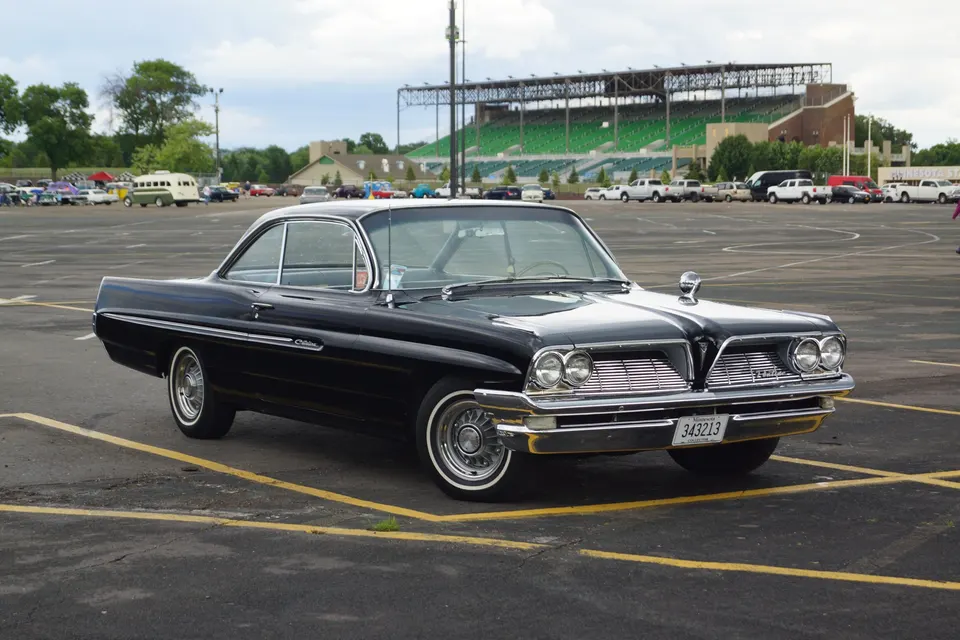

1961 Pontiac Catalina Super Duty 421
Pontiac did not build a factory-installed 1961 Catalina Super Duty 421 model. Late in the 1961 season, Pontiac made the 421 Super Duty engine and related competition parts available to selected racers and dealers for installation after the donor car left the assembly line. Factory installation began for 1962. This page covers that narrow 1961 dealer and race-team conversion path.
Two engine configurations appear in the reviewed exact-year record. A single Carter AFB version was rated at 373 horsepower and was intended for NASCAR use where one carburetor was required. The dual-Carter AFB version was rated at 405 horsepower and paired only with a manual transmission. Both used 421 cubic inches, an 11.0:1 compression ratio, mechanical lifters, 1.65:1 rocker arms, dual-breaker ignition, and low-restriction dual exhaust. Early 405-hp assemblies are associated with 540306 heads and 1.92/1.66-inch valves.
The Catalina underneath remained a Series 23 Pontiac. The two-door sedan and bubble-top Sport Coupe are the most relevant race-donor bodies, but body style must be established from the cowl tag and paperwork for each car. A floor-shifted four-speed was available by special order, while the factory AMA sheet lists a 3.23 standard axle, 3.42 with the 425-A performance engine, and special-order ratios through 3.90. Those donor-car records do not prove which gear was installed with every 421 conversion.
Pontiac's perimeter frame used independent front suspension, a four-link coil-spring rear suspension, and 11-inch drums at all four corners. Heavy-duty springs, power assist, Safe-T-Track, and aluminum eight-lug hubs and drums were available. These are useful period-correct configuration points, but no one option proves Super Duty identity.
Authentication begins with separation of two records: the Catalina Pontiac built and the Super Duty equipment installed after delivery. PHS or equivalent Pontiac paperwork can establish the donor car. Dealer invoices, parts receipts, race-team records, period photographs, ownership history, and date-compatible Super Duty components are needed to support the conversion. A later 421, dual quads, hood scoop, badges, or eight-lug wheels can make a convincing tribute without proving a late-1961 installation.
